Tech Specs

Specifications

Battery Info

Capacity: 268.8Wh (12Ah) Type: LiFePO4 (Lithium Iron Phosphate) Life Cycles: 2,500+ Cycles to 80% Original Capacity Shelf-life: Recharge to 80% Every 3-6 Months Management System: MPPT Controller, BMS, etc.

OUTPUT

AC Outlets: 2 x 120V/5A Outlets 600W In Total Inverter Type: Pure Sine Wave Surge Power: 1,200W USB-C Port: 1 x 100W Max. USB-A Port: 2 x 5V/3A USB-A 12V DC Outlets: 1 x 12V/10A (Car Outlet) 2 x 12V/10A DC 5521 (5.5mm Outlet) *All Regulated. Wireless Charging Pad: 1 x 15W Max.

INPUT

AC Charging Cable (Standard Mode): 268W Max. AC Charging Cable (Turbo Mode): 350W Max. Solar Input: 200W Max, VOC 12-28VDC Car Input: 12/24V from Cigarette Lighter Port Maximum Input: 430W with AC & Solar (or Dual AC) Simultaneously

RECHARGE TIME

AC Charging Cable (Turbo Mode 350W): ≈1.3-1.8 Hours AC Charging Cable (Standard Mode 268W): ≈1.5-2.0 Hours Solar (200W): ≈1.8-2.0 Hours (With prime sunshine, ideal orientation and low temperature) 12V/24V Car Outlet (100W/200W): ≈3.2-3.7 or 1.9-2.4 Hours AC + Solar (430W): ≈1.2~1.7 Hours (With prime sunshine, ideal orientation and low temperature) Dual AC (430W): ≈1.2~1.7 Hours (With optional BLUETTTI T200 Adapter)

GENERAL

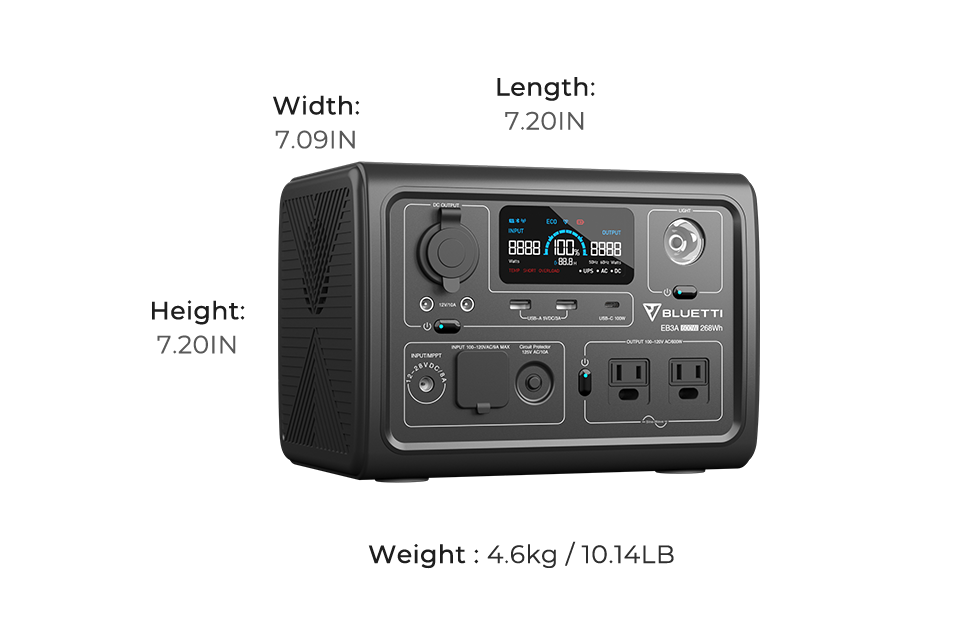

Pass-through Charging: Yes Weight: 10.14LB/4.6KG Dimensions (LxWxD): 10.04*7.09*7.20IN/255*180*183MM Operating Temperature: -4-104℉ (-20-40℃) Storage Temperature: 32-104°F (0-40°C) Certifications: UL Standard, CEC, DOE, FCC, CA Prop 65 Warranty: 24 Months Optional Accessories: BLUETTI PV120/PV200 (Solar Panel) Car Charging Cable (Car Input) Solar Charging Cable (Solar Input)

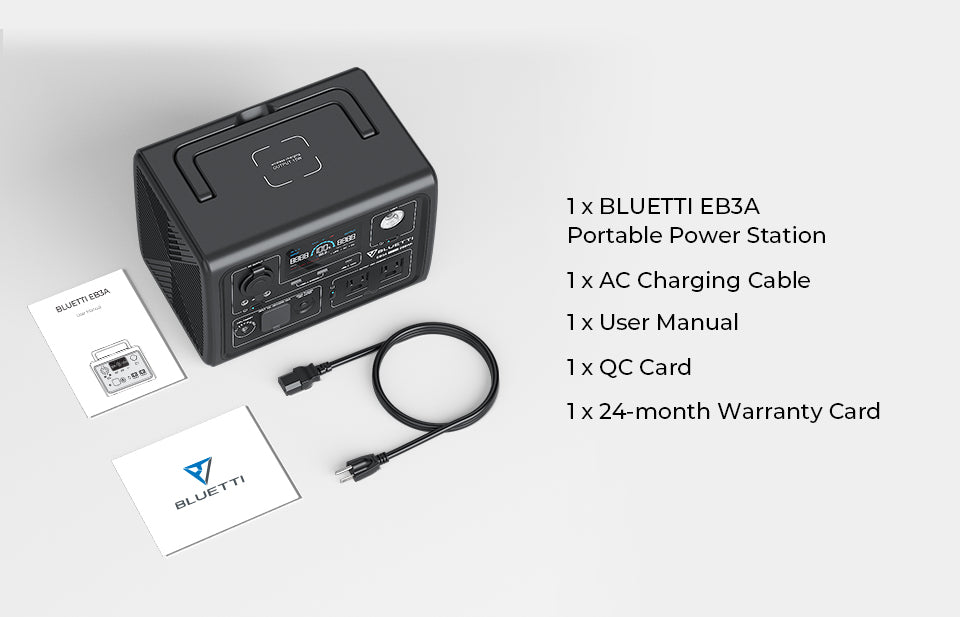

In the Box
User Manual

Download BLUETTI EB3A Protable Power Station User Manual
